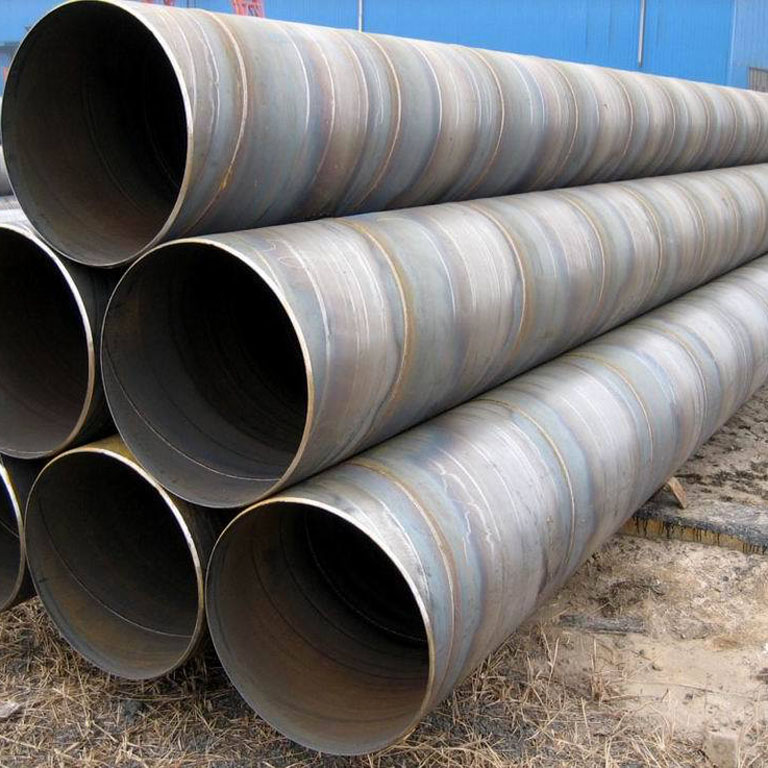

What is SSAW Steel Pipe?
SSAW steel pipe(Spiral Submerged arc welding pipe) is made up of hot-rolled coiled steel using a double-sided submerged arc welding method. The welding process allows the steel pipes manufacturers to produce large-diameter steel pipes suitable for different applications.
Short Description:
FOB Price: US $0.5 – 9,999 / Piece
Min.Order Quantity: 100 Piece/Pieces
Supply Ability: 10000 Piece/Pieces per Month
Keywords: SSAW Pipe, SSAW Steel Pipe, Spiral Steel Pipe, Welded Spiral Pipe
Size: OD: 219.1mm ~ 3500mm; WT: 6mm ~ 25mm (Up to 1”);LENGTH: 6mtr ~ 18mtr, SRL, DRL
Standard & Grade: ASTM A53 Grade A/B/C, AWWA C200
Ends: Beveled Ends, Square Cut, With LTC/STC/BTC/VAM Connection
Packing: In Bulk, Ends Protector on Both Sides, Waterproof Materials Wrapped
Usage: Used for low pressure liquid delivery, such as water, gas, and oi
Sizes of SSAW Steel Pipe(Spiral Submerged Arc Pipe)
Out diameter:219mm-3620mm
Wall thickness: 5mm-25.4mm
Length: 3m-12m
Chemical Analysis and Mechanical Properties of SSAW Steel Pipe
Standard | Grade | Chemical Composition(max)% | Mechanical Properties(min) | |||||
C | Si | Mn | P | S | Tensile Strength(Mpa) | Yield Strength(Mpa) | ||
API 5CT | h40 | - | - | - | - | 0.030 | 417 | 417 |
J55 | - | - | - | - | 0.030 | 517 | 517 | |
K55 | - | - | - | - | 0.300 | 655 | 655 | |
API 5L PSL1 | A | 0.22 | - | 0.90 | 0.030 | 0.030 | 335 | 335 |
B | 0.26 | - | 1.20 | 0.030 | 0.030 | 415 | 415 | |
X42 | 0.26 | - | 1.30 | 0.030 | 0.030 | 415 | 415 | |
X46 | 0.26 | - | 1.40 | 0.030 | 0.030 | 435 | 435 | |
X52 | 0.26 | - | 1.40 | 0.030 | 0.030 | 460 | 460 | |
X56 | 0.26 | - | 1.40 | 0.030 | 0.030 | 490 | 490 | |
X60 | 0.26 | - | 1.40 | 0.030 | 0.030 | 520 | 520 | |
X65 | 0.26 | - | 1.45 | 0.030 | 0.030 | 535 | 535 | |
X70 | 0.26 | - | 1.65 | 0.030 | 0.030 | 570 | 570 | |
API 5L PSL2 | B | 0.22 | 0.45 | 1.20 | 0.025 | 0.015 | 415 | 415 |
X42 | 0.22 | 0.45 | 1.30 | 0.025 | 0.015 | 415 | 415 | |
X46 | 0.22 | 0.45 | 1.40 | 0.025 | 0.015 | 435 | 435 | |
X52 | 0.22 | 0.45 | 1.40 | 0.025 | 0.015 | 460 | 460 | |
X56 | 0.22 | 0.45 | 1.40 | 0.025 | 0.015 | 490 | 490 | |
X60 | 0.12 | 0.45 | 1.60 | 0.025 | 0.015 | 520 | 520 | |
X65 | 0.12 | 0.45 | 1.60 | 0.025 | 0.015 | 535 | 535 | |
X70 | 0.12 | 0.45 | 1.70 | 0.025 | 0.015 | 570 | 570 | |
X80 | 0.12 | 0.45 | 1.85 | 0.025 | 0.015 | 625 | 625 | |
ASTM A53 | A | 0.25 | 0.10 | 0.95 | 0.050 | 0.045 | 330 | 330 |
B | 0.30 | 0.10 | 1.20 | 0.050 | 0.045 | 415 | 415 | |
ASTM A252 | 1 | - | - | - | 0.050 | - | 345 | 345 |
2 | - | - | - | 0.050 | - | 414 | 414 | |
3 | - | - | - | 0.050 | - | 455 | 455 | |
EN10217-1 | P195TR1 | 0.13 | 0.35 | 0.70 | 0.025 | 0.020 | 320 | 320 |
P195TR2 | 0.13 | 0.35 | 0.70 | 0.025 | 0.020 | 320 | 320 | |
P235TR1 | 0.16 | 0.35 | 1.20 | 0.025 | 0.020 | 360 | 360 | |
P235TR2 | 0.16 | 0.35 | 1.20 | 0.025 | 0.020 | 360 | 360 | |
P265TR1 | 0.20 | 0.40 | 1.40 | 0.025 | 0.020 | 410 | 410 | |
P265TR2 | 0.20 | 0.40 | 1.40 | 0.025 | 0.020 | 410 | 410 | |
EN10217-2 | P195GH | 0.13 | 0.35 | 0.70 | 0.025 | 0.020 | 320 | 320 |
P235GH | 0.16 | 0.35 | 1.20 | 0.025 | 0.020 | 360 | 360 | |
P265GH | 0.20 | 0.40 | 1.40 | 0.025 | 0.020 | 410 | 410 | |
EN10217-5 | P235GH | 0.16 | 0.35 | 1.20 | 0.025 | 0.020 | 360 | 360 |
P265GH | 0.20 | 0.40 | 1.40 | 0.025 | 0.020 | 410 | 410 | |
EN10219-1 | S235JRH | 0.17 | - | 1.40 | 0.040 | 0.040 | 360 | 360 |
S275JOH | 0.20 | - | 1.50 | 0.035 | 0.035 | 410 | 410 | |
S275J2H | 0.20 | - | 1.50 | 0.030 | 0.030 | 410 | 410 | |
S355JOH | 0.22 | 0.55 | 1.60 | 0.035 | 0.035 | 470 | 470 | |
S355J2H | 0.22 | 0.55 | 1.60 | 0.030 | 0.030 | 470 | 470 | |
S355K2H | 0.22 | 0.55 | 1.60 | 0.030 | 0.030 | 470 | 470 |
Standard and Classfication
Classfication | Standard | Main Products |
Steel Pipe for Fluid Service | GB/T 14291 | Welded pipe for mine fluid sevice |
GB/T 3091 | Welded pipe for low pressure fluid service | |
SY/T 5037 | Spirally submerged arc welded steel pipe for pipelines for low pressure fluid service | |
ASTM A53 | Black and hot-hipped galvanized welded and seamless steel pipe | |
BS EN10217-2 | Welded steel tybes for pressure purposes – delivery technical conditions – part2: Electric welded non- alloy and alloy steel tubes with specified elevated temperature properties | |
BS EN10217-5 | Welded steel tybes for pressure purposes – delivery technical conditions – part5: submerged arc welded non-alloy and alloy steel tubes with specified elevated temperature properties | |
Steel Pipe for Ordinary Structure | GB/T 13793 | Longitudinally electric resistance welded steel pipe |
SY/T 5040 | Spirally submerged arc welded steel pipe piles | |
ASTM A252 | Welded and seamless steel pipe piles | |
BS EN10219-1 | Cold formed welded structural hollow sections of non-alloy and fine grain steels – part1: Technical delivert conditions | |
BS EN10219-2 | Cold formed welded structural hollow sections of non-alloy and fine grain steels – part2: tolerances dimmsions and sectional properties | |
Line Pipe | GB/T 9711.1 | Steel pipe for pipeline transportation system of petroleum and natural gas industries(Class A steel pipe) |
GB/T 9711.2 | Steel pipe for pipeline transportation system of petroleum and natural gas industries(Class B steel pipe) | |
API 5L PSL1/2 | Line pipe | |
Casing | API 5CT | Steel pipe for use as casing or tubing for wells of petroleum and natural gas industries |
The Advantages of SSAW Pipes
SSAW steel pipe can be produced in longer length (maximum length up to 50 meters) compared to LSAW steel pipes
Due to its spiral seam SSAW pipe has an accurate diameter accuracy and strength
The sizes are adjustable & can be tailored to end-users requirement
Usage: Used for low pressure liquid delivery, such as water, gas, and oil.
SSAW steel pipe is the raw material of strip coil, often temperature extrusion molding, automatic double-wire double submerged arc welding process made of spiral seam pipe. Spiral steel pipe will strip into the pipe unit, the multi-roll rolling, strip rolled up, forming a circular gap opening gap, adjust the squeeze roll reduction, the weld gap control in the 1 ~ 3mm, and make both ends of the weld flush.
We have engaged in the steel pipe industry for 30years with rich exprience and strong strengths. Welcome to contact us to get more information about spiral welded pipe!
