Introduction of square tube

Square tube is a name for square pipe, which is a steel pipe with equal side lengths. Most square tubes are mostly steel tubes, mostly structural square tubes, decorative square tubes, construction square tubes, etc.

Short Description:

Keywords(pipe type):carbon steel pipe,Seamless Steel Pipe, Seamless Stainless Steel Pipe, Steel Piping;Hollow Section;Square Pipe
OD:20*20~1200*1200mm
Tinckness:2,3,4,5,6,8,10,12,14,16,18,20mm
Length:5m or Customized
Standard & Grade:ASTM A500, ASTM A53, EN 10210, EN 10219, JIS G 3466, BS 1387, BS 6323
Marterial:S235JR, S355JR, S275JR, C350LO, C250LO, G250, G350(C450LO)
Delivery:Within 30 days and Depends on your order quantity
Payment:TT, LC , OA , D/P
Packing:Waterproof Paper Wrapped, Steel Strips Bundled, Two Tags on Each Bundle
usage:In Industrial Construction, Machinery/Rack/Container manufacturing

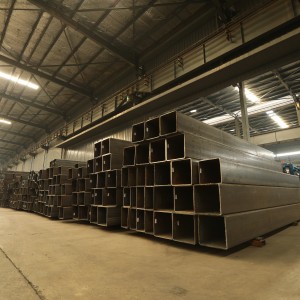

a8efbb76-300x300



Square tubes sizes

Size (mm)

Wall Thickness (mm)

Size (mm)

Wall Thickness (mm)

20*20

1.2

70*70

60*80

100*40

1.8

1.3

2

1.4-1.5

2.2

1.7

2.3

1.8

2.5-4.0

2

4.5-5.0

2.2

5.5-5.75

2.3

75*75

60*90

100*50

1.8

2.5-2.75

2

25*25

20*30

1.2

2.2

1.3

2.3

1.5

2.5-4.0

1.7

4.5-5.0

1.8

5.5-5.75

2

80*80

100*60

100*80

120*60

2

2.3-2.3

2.2

2.5-3.0

2.3

30*30

30*40

25*40

20*40

1

2.5-4.0

1.2

4.5-5.0

1.3

5.5-5.75

1.5

7.5-7.75

1.7

100*100

120*80

2

1.8

2.2

2

2.3

2.2

2.5-5.0

2.3

5.5-5.75

2.5*2.75

7.5-7.75

3

120*120

140*80

150*100

160*80

2.5

40*40

30*50

25*50

1.2

2.75

1.3

3

1.4-1.5

3.25-5.0

1.7

5.5-7.0

1.8

7.5-7.75

2

140*140

150*150

200*100

3.5-4.0

2.2-2.3

4.5-5.0

2.5-4.0

5.25-7.0

50*50

60*40

30*60

40*50

1.5

7.5-7.75

1.7

160*160

180*180

3

1.8

3.5

2

3.75

2.2

4.0-5.0

2.3

5.25-5.75

2.5*-4.0

7.5-7.75

4.25-5.0

60*60

40*80

75*75

50*70

50*80

2.3

60*60

40*80

75*45

50*70

50*80

1.5

2.5-4.0

1.7

4.25-5.0

1.8

5.5-5.75

2

/

2.2-2.3

/



Available Quality Standards

ASTM A500 Cold Formed Welded and Seamless Carbon Steel Steel Structural Tubing in Round and Shapes

EN 10210 Hot finished structural hollow sections of non-alloy and fine grain structural steels

EN 10219 Cold formed welded structural hollow sections of non-alloy and fine grain steels

ASTM A53 used as structural steel or for low-pressure plumbing

Standard Corner Radius(Structural Sizes:)
Max. 3 x Nominal Wall Thickness

Mechanical Sizes

Structural Sizes

Largest Nominal Outside Dimension

Outside Tolerance at all Sides at Corners

Largest Nominal Outside Dimension

Outside Tolerance at all Sides at Corners

3/16 to 5/8

± 0.004

2 1/2 and under

± 0.020

over 5/8 to 1 1/8

± 0.005

over 2 1/2 to 3 1/2

± 0.020

over 1 1/8 to 1 1/2

± 0.006

over 3 1/2 to 5 1/2

± 0.030

over 1 1/2 to 2

± 0.008

over 5 1/2

± 1%

over 2 to 3

± 0.010

over 3 to 4

± 0.020

over 4 to 6

± 0.020

over 6 to 8

± 0.025

Straightness
Mechanical Sizes: Max. 1/16″ in 3 feet
Structural Sizes: Max. 1/8″ x Number of feet of total length divided by 5

Wall Thickness

Mechanical & Structural Sizes: ± 10% of Nominal Wall Thickness

Squareness of Sides
Mechanical Sizes: Max: ± b = c x 0.006″
b = Tolerance for out-of-square
c = Largest external dimension across flats
Structural Sizes: Adjacent sides may deviate from 90 ° by ± 2 °

Maximum Twist (Mechanical & Structural Sizes)

Largest Dimension, inches

Max. Twist*, inches

over 1/2 to 1 1/2

0.050

over 1 1/2 to 2 1/2

0.062

over 2 1/2 to 4

0.075

over 4 to 6

0.087

over 4 to 8

0.100

 Convexity & Concavity(Mechanical & Structural Sizes)

Largest Nominal O.D., Inches

Tolerance ± Inches

2 1/2 and under

± 0.010

over 2 1/2 to 4

± 0.015

over 4 to 8

± 0.025

Structural Tubing A 500 Requirements

Grades

Chemical

Physical

C Max. %

Mn Max. %

P Max. %

S Max. %

Cu Max. %

Tensile strength, min. psi

Yield strength, min. psi

Elongation in 2 in.

Grade B

0.26

/

0.04

0.05

0.20

58,000

46,000

23

Grade C

0.23

1.35

0.04

0.05

0.20

62,000

50,000

21

Usage:

Hollow Sections:

Construction: Hall Structure, Sea Trestle, Airport Structure, Shipbuilding, Security Door Frames, Garage Doors, Strengthening Liners of Steel Doors and Windows, Indoor Partition Walls, Cable Bridge Structures and Expressway Safety Guards, Balustrade, Decorating, Residential, Ornamental Pipes

Automotive Parts:Motorcar Case,Car and Bus Manufacture, Vehicles

Agriculture: Agricultural Equipment

Industry:Machinery,Solar Stent, Offshore Oil Field, Mine Equipment, Electromechanical Hardware, , heavy engineering, Mining and Resources, Process Engineering, Materials Handling,Mechanical Parts

Traffic:Walking Rails, Roll-up Doors, Guardrail, Plaza Structure, Signage, Road Furniture, Fencing

Logistics Storage: Supermarket Shelves, Containers, Transport Industries, Commercial Construction

Other: Sports Apparatus, Leisure Equipment, Furniture, School Furniture

Scaffolding Tube:

Material Storage Racks, Pallets, Hydraulic Platforms, Trusses, Columns, Purlins, Greenhouse Stands Towers
