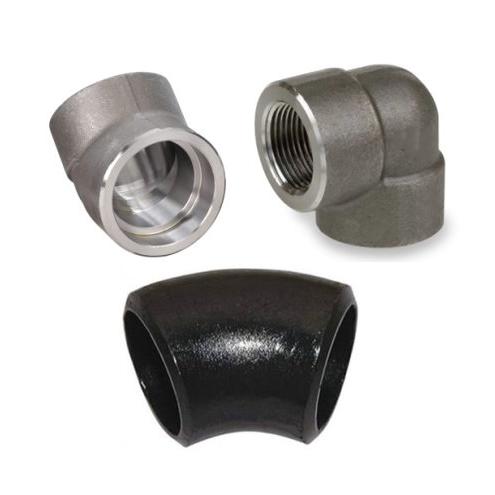

Carbon Steel Fittings
Basic Introduction
We can manufacture and offer high quality carbon steel pipe bends with bending radius ranging from R=3D-10D and bending angle of 10 degree to 180 degree. In addition, we can also manufacture carbon steel bends as per custom requirements of our esteemed clients. All our carbon steel fitting and flange products are supplied with relevant test certificates of raw materials and finished products. Carbon steel pipe bends with a bending radius 3D, 5D and 7D are most commonly used across various industries. Our key pipe bend products include – high quality carbon steel long radius piggable bends, seamless long radius piggable bends and welded long radius piggable bends.
Carbon Steel Pipe Fittings Production Range
| Grade Specification | Carbon Steel: ASTM/ASME A234 WPB / A860 – MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70Low temperature Steel: A420 WPL3 / A420 WPL6 |
| Type | Seamless / Welded / Fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Range | ½”NB to 48″NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |

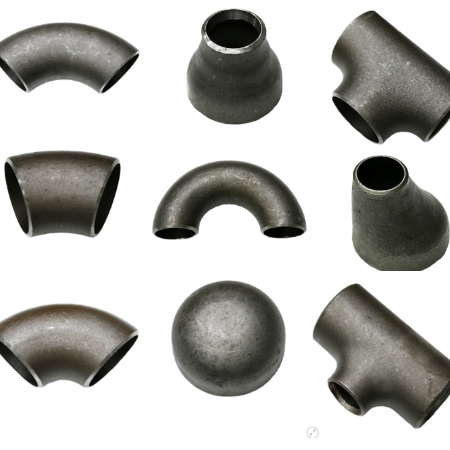

Buttweld Carbon Steel Pipe Fittings
Seamless/ Welded 100% Radiography Tested
| Products | Size | |
| Carbon Steel Elbows – Long Radius | Carbon Steel Stub Ends | Sizes 1/2″ – 48″ |
| Carbon Steel Elbows – Short Radius | Carbon Steel Crosses | |
| Carbon Steel Reducing Elbows | Carbon Steel Reducing Crosses | |
| Carbon Steel 45° Elbows | Carbon Steel 180° LR Return Bends | |
| Carbon Steel Tees | Carbon Steel 180° SR Return Bends | |
| Carbon Steel Tees | Carbon Steel Pipe Bends / Piggable Bends | |
| Carbon Steel Reducers | Carbon Steel Couplings | |
| Carbon Steel Concentric Reducers | Carbon Steel Pipe Nipples | |
| Carbon Steel Eccentric Reducers | Carbon Steel Forged/Plate Cut Rings | |
| Carbon Steel 3D Elbow | Carbon Steel End Caps | |
| Carbon Steel 5D Elbow | Carbon Steel Forged / Plate Circles | |
High Pressure Forged Carbon Steel Pipe Fittings
Threaded and Socket Weld Pipe Fittings
| Products | Size | |
| Carbon Steel 90° Elbows | Carbon Steel Couplings | Sizes 1/8″ – 4″
Pressure Ratings – 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Carbon Steel 45° Elbows | Carbon Steel Reducers | |
| Carbon Steel Street Elbows | Carbon Steel Inserts | |
| Carbon Steel Tees | Carbon Steel Caps | |
| Carbon Steel Crosses | Carbon Steel Unions | |
Carbon Steel Flanges
Forged and Plate Flanges
| Grade/Specification | ASTM A105 / A350 LF2, ASME SA105, A694 – F42, F46, F52, F60, F65, F70, A36, A516 Gr. 70, 60 etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Size | ½” to 36″ |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Product | Size | |
| Carbon Steel Slip-On Flanges | Carbon Steel Threaded Flanges | 1/2″ – 36″
Raised Face or Flat Face |
| Carbon Steel Weld Neck Flanges | Carbon Steel Socket Weld Flanges | |
| Carbon Steel Blind Flanges | Carbon Steel Reducing Flanges | |
| Carbon Steel Lap Joint Flanges | Carbon Steel Plate Flanges | |
